Sandvik Coromant

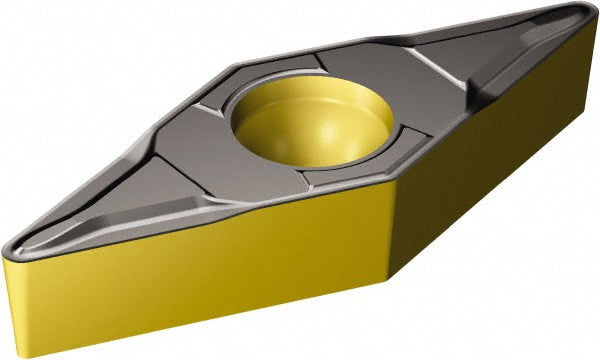

VBMT 11 03 04-MF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5755620
MFR# 5755620ISO/ANSI# VBMT 11 03 04-MF 1105Series CoroTurn 107
$24.39List $31.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 5755620 is a VBMT 11 03 04-MF 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeB
Coating finishTiAlN2
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4358
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 04-MF 1105
Length range0.4000 - 0.5000
Manufacturers catalog number5755620
Manufacturer grade1105
Maximum depth of cut0.4201
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
