Sandvik Coromant

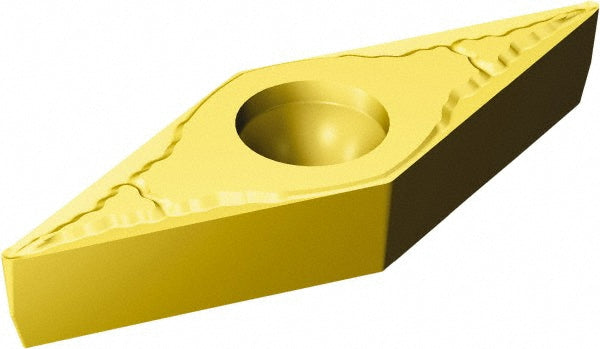

VBMT 16 04 04-PM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5755632
MFR# 5755632ISO/ANSI# VBMT 16 04 04-PM 1525Series CoroTurn 107
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755632 is a VBMT 16 04 04-PM 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-PM 1525
Length range0.6000 - 0.6500
Manufacturer grade1525
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
