Sandvik Coromant

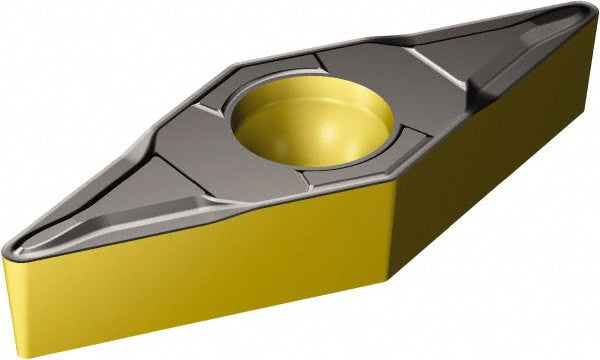

VBMT 16 04 04-MF 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5755640
MFR# 5755640ISO/ANSI# VBMT 16 04 04-MF 1105Series CoroTurn 107
$24.98List $32.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755640 is a VBMT 16 04 04-MF 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-MF 1105
Length range0.6000 - 0.6500
Manufacturer grade1105
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
