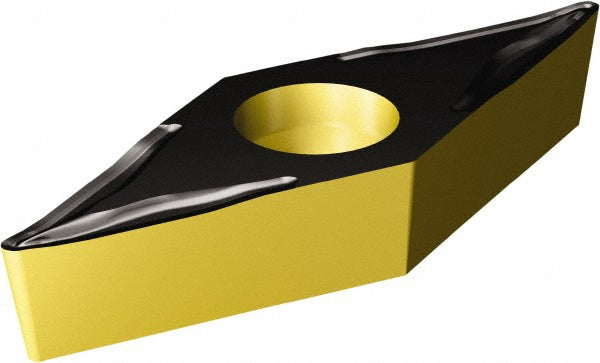

VBMT 16 04 04-UM 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5755686
MFR# 5755686ISO/ANSI# VBMT 16 04 04-UM 1515Series CoroTurn 107
$26.98List $34.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755686 is a VBMT 16 04 04-UM 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-UM 1515
Length range0.6000 - 0.6500
Manufacturer grade1515
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
