Sandvik Coromant

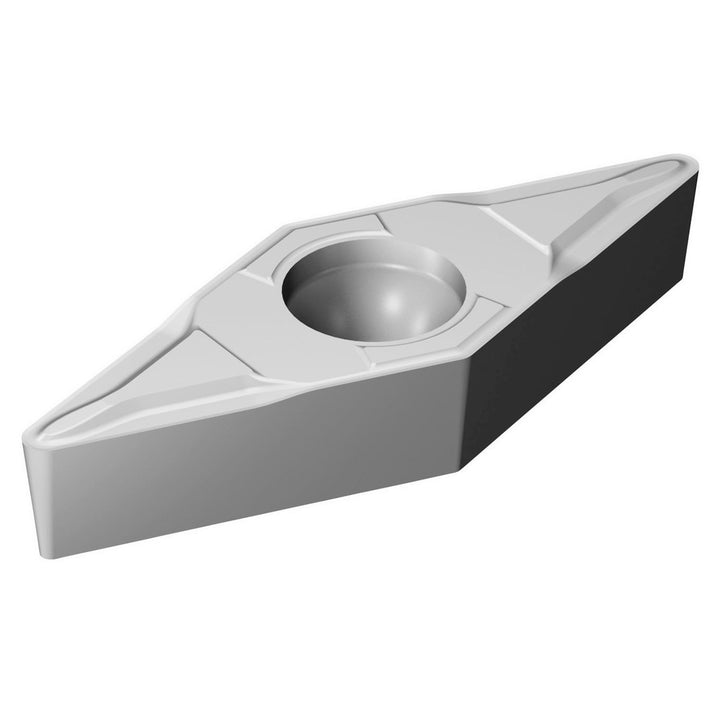

VBMT 16 04 04-KF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5755687
MFR# 5755687ISO/ANSI# VBMT 16 04 04-KF H13ASeries CoroTurn 107
$19.66List $25.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5755687 is a VBMT 16 04 04-KF H13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKF
Clearance codeB
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-KF H13A
Length range0.6000 - 0.6500
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle5
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
