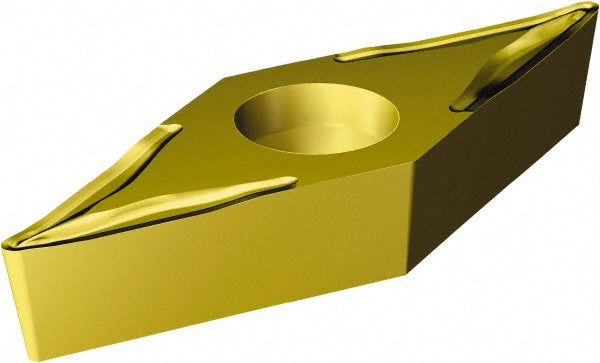

VBMT 16 04 04-UM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755693
MFR# 5755693ISO/ANSI# VBMT 16 04 04-UM 2025Series CoroTurn 107
$25.89List $33.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755693 is a VBMT 16 04 04-UM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-UM 2025
Length range0.6000 - 0.6500
Manufacturer grade2025
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Tolerance codeM
Wiper edgeNo
