Sandvik Coromant

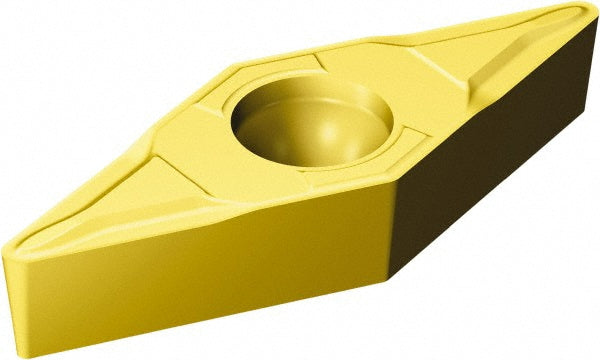

VBMT 11 03 08-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5755694
MFR# 5755694ISO/ANSI# VBMT 11 03 08-MF 2015Series CoroTurn 107
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755694 is a VBMT 11 03 08-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4044
Insert materialCarbide
Insert shapeDiamond
Insert size code222
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 08-MF 2015
Length range0.4000 - 0.5000
Manufacturer grade2015
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Tolerance codeM
Wiper edgeNo
