Sandvik Coromant

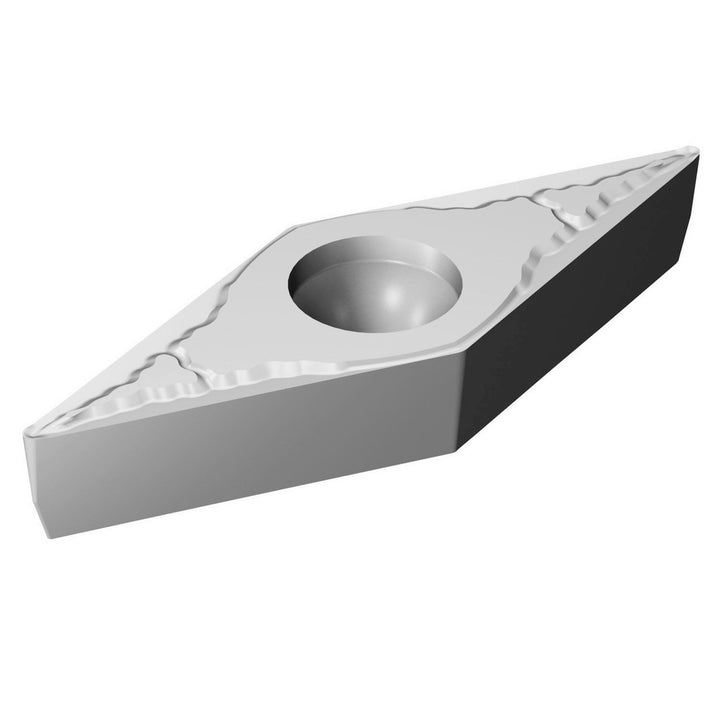

VBMT160404KMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5755695
MFR# 5755695ISO/ANSI# VBMT160404KMH13ASeries CoroTurn 107
$18.20List $23.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5755695 is a VBMT160404KMH13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeB
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404KMH13A
Length range0.6500 - 0.7000
Manufacturers catalog number5755695
Manufacturer gradeH13A
Maximum depth of cut0.6382
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle5
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
