Sandvik Coromant

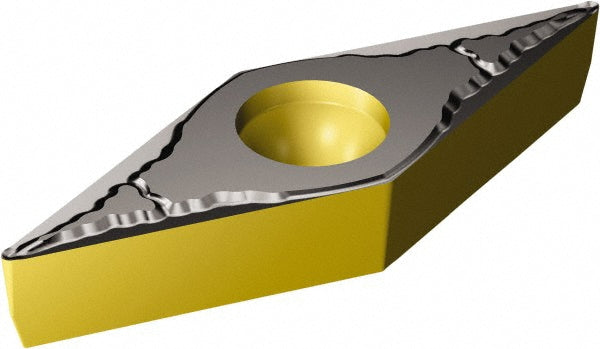

VBMT 16 04 04-KM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5755701
MFR# 5755701ISO/ANSI# VBMT 16 04 04-KM 3210Series CoroTurn 107
$24.76List $31.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755701 is a VBMT 16 04 04-KM 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-KM 3210
Length range0.6000 - 0.6500
Manufacturer grade3210
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle5
Tolerance codeM
Wiper edgeNo
