Sandvik Coromant

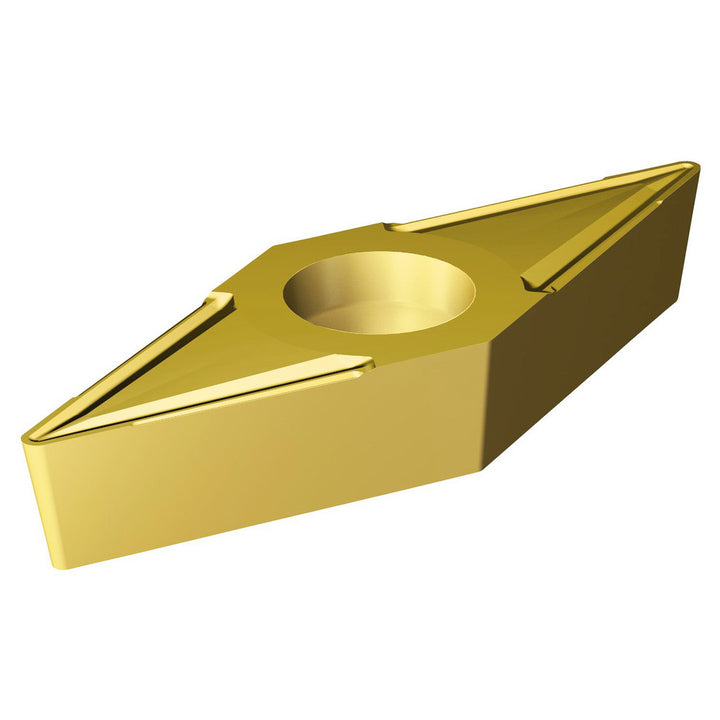

VBMT160404UR235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5755707
MFR# 5755707ISO/ANSI# VBMT160404UR235Series CoroTurn 107
$24.59List $31.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755707 is a VBMT160404UR235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerUR
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404UR235
Length range0.6500 - 0.7000
Manufacturers catalog number5755707
Manufacturer grade235
Maximum depth of cut0.6382
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
