Sandvik Coromant

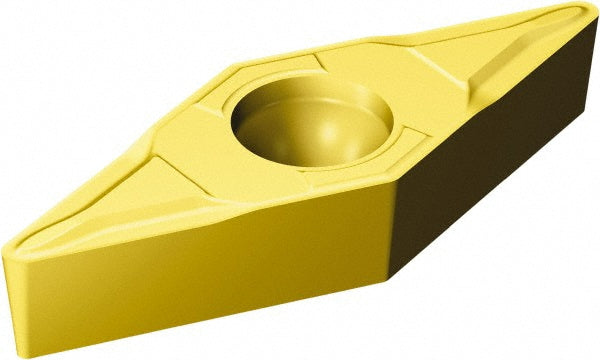

VBMT 16 04 08-KF 3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5755716
MFR# 5755716ISO/ANSI# VBMT 16 04 08-KF 3005
$22.15List $28.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755716 is a VBMT 16 04 08-KF 3005 carbide indexable insert, grade 3005, TiCN coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-KF 3005
Length range0.6000 - 0.6500
Manufacturer grade3005
Relief angle5
Tolerance codeM
