Sandvik Coromant

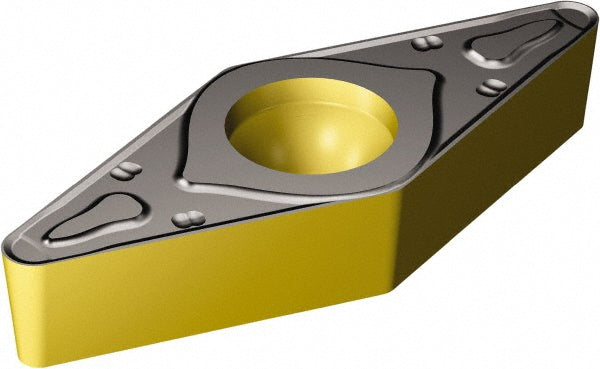

VBMT 16 04 08-MR 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5755723
MFR# 5755723ISO/ANSI# VBMT 16 04 08-MR 1105
$24.98List $32.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755723 is a VBMT 16 04 08-MR 1105 carbide indexable insert, grade 1105, TiAlN coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishTiAlN
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-MR 1105
Length range0.6000 - 0.6500
Manufacturer grade1105
Relief angle5
Tolerance codeM
