Sandvik Coromant

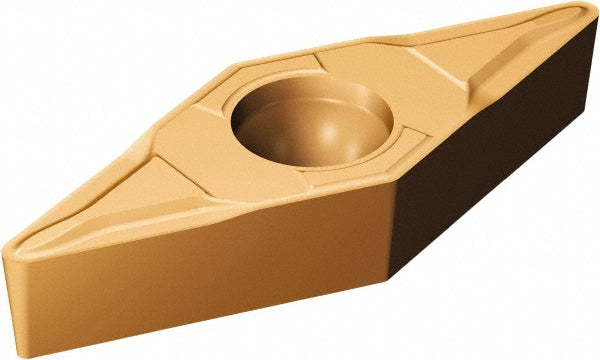

VBMT 16 04 08-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755734
MFR# 5755734ISO/ANSI# VBMT 16 04 08-MF 1125Series CoroTurn 107
$24.98List $32.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755734 is a VBMT 16 04 08-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-MF 1125
Length range0.6000 - 0.6500
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
