Sandvik Coromant

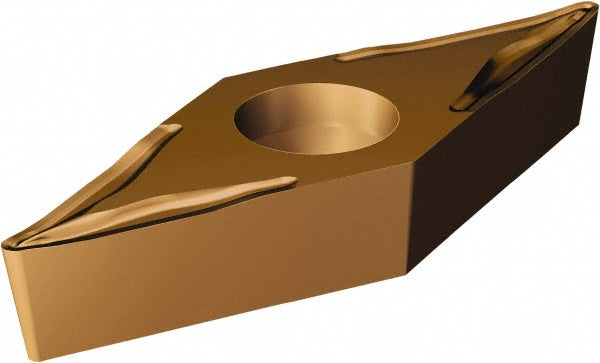

VBMT 16 04 08-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5755747
MFR# 5755747ISO/ANSI# VBMT 16 04 08-UM 1115Series CoroTurn 107
$26.98List $34.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755747 is a VBMT 16 04 08-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-UM 1115
Length range0.6000 - 0.6500
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
