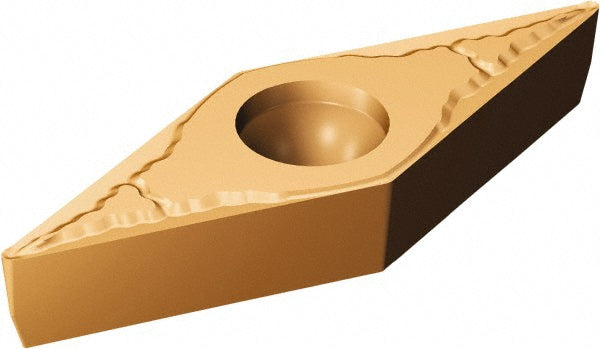

VCMT 11 03 04-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755875

Sandvik Coromant

VCMT 11 03 04-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755875

MFR# 5755875ISO/ANSI# VCMT110304Series CoroTurn 107

$25.56List $32.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5755875 is a VCMT 11 03 04-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Ansi insert codeVCMT221
Ansi size code221
Chip breakerMM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4358
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVCMT
Insert thickness in1/8
Iso codeVCMT 11 03 04-MM 1125
Iso insert codeVCMT110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number5755875
Manufacturer grade1125
Maximum depth of cut0.4201
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
