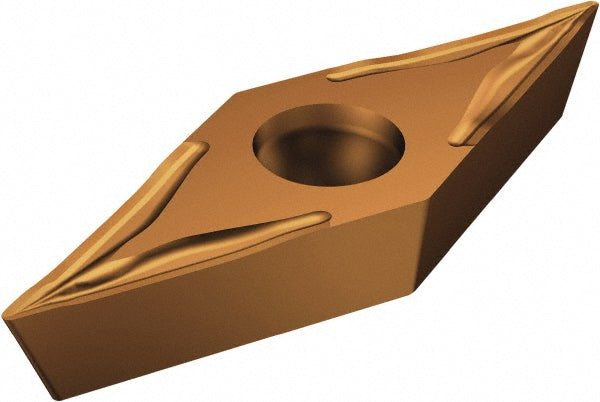

VCGT 11 03 01-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5755890

MFR# 5755890ISO/ANSI# VCGT110301Series CoroTurn 107

$37.30List $47.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
Grade1115
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5755890 is a VCGT 11 03 01-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeVCGT2203
Ansi size code2203
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4319
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2203
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT 11 03 01-UM 1115
Iso insert codeVCGT110301
Iso size code110301
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Side clearancePositive
Tolerance codeG
Wiper edgeNo
