Sandvik Coromant

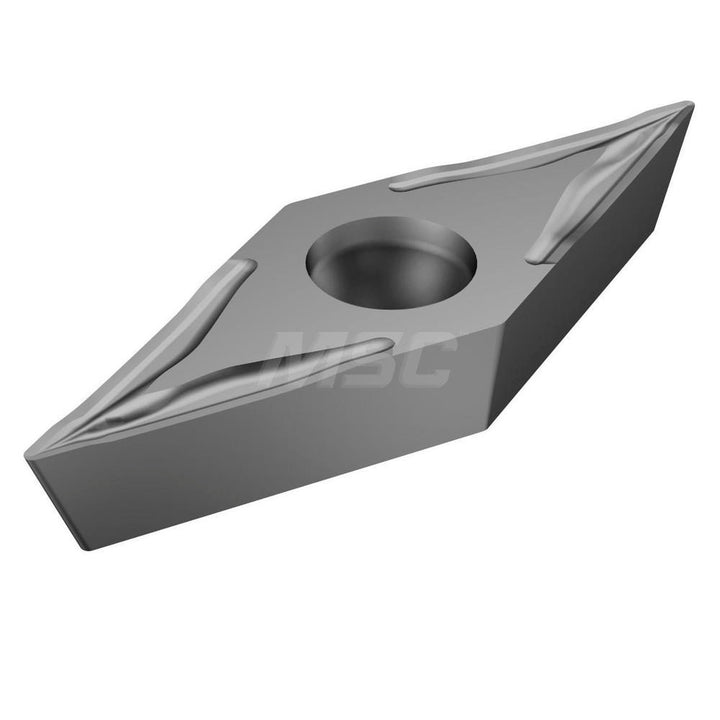

VCGT110302UMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5755892
MFR# 5755892ISO/ANSI# VCGT110302UMH13ASeries CoroTurn 107
$28.33List $36.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5755892 is a VCGT110302UMH13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Corner radius0.0079
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4358
Insert materialCarbide
Insert shapeDiamond
Insert size code220
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110302UMH13A
Length range0.4000 - 0.5000
Manufacturers catalog number5755892
Manufacturer gradeH13A
Maximum depth of cut0.4280
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
