Sandvik Coromant

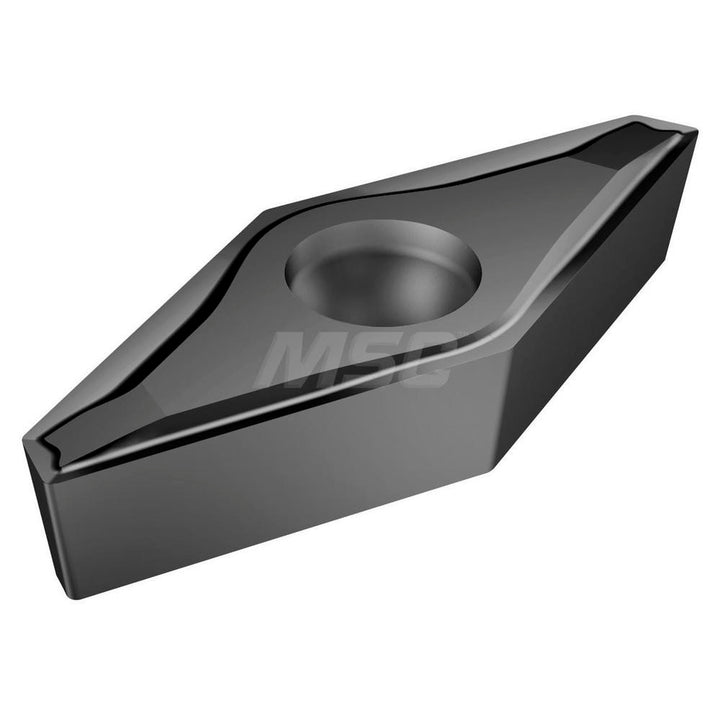

VCEX110301LF1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5755898
MFR# 5755898ISO/ANSI# VCEX110301LF1105Series CoroTurn 107
$44.96List $57.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 5755898 is a VCEX110301LF1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.
Specifications
Chip breakerF
Clearance codeC
Coating finishTiAlN2
Coating processPVD
Corner radius0.0039
Hole diameter0.1102
Included angle35
Inscribed circle in3/8
Insert handLeft Hand
Insert holding methodScrew
Insert length0.4358
Insert materialCarbide
Insert shapeDiamond
Insert size code2203
Insert styleVCEX
Insert thickness in1/8
Iso codeVCEX110301LF1105
Length range0.4000 - 0.5000
Manufacturers catalog number5755898
Manufacturer grade1105
Maximum depth of cut0.4319
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeE
Wiper edgeYes
