Sandvik Coromant

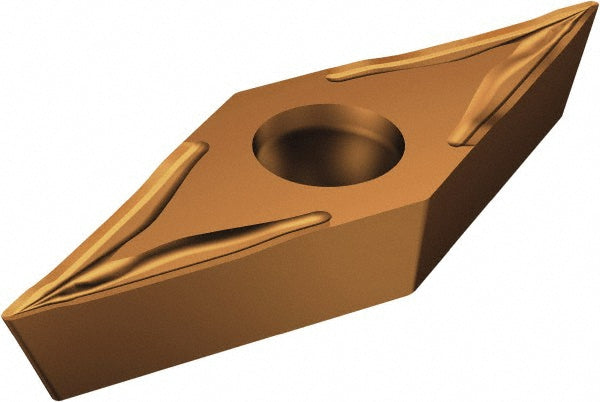

VCET 11 03 02-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5755905
MFR# 5755905ISO/ANSI# VCET110301Series CoroTurn 107
$41.09List $52.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755905 is a VCET 11 03 02-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Ansi insert codeVCET220
Ansi size code220
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4358
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code220
Insert styleVCET
Insert thickness in1/8
Iso codeVCET 11 03 02-UM 1115
Iso insert codeVCET110301
Iso size code110301
Length range0.4000 - 0.5000
Manufacturers catalog number5755905
Manufacturer grade1115
Maximum depth of cut0.4280
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Side clearancePositive
Tolerance codeE
Wiper edgeNo
