Sandvik Coromant

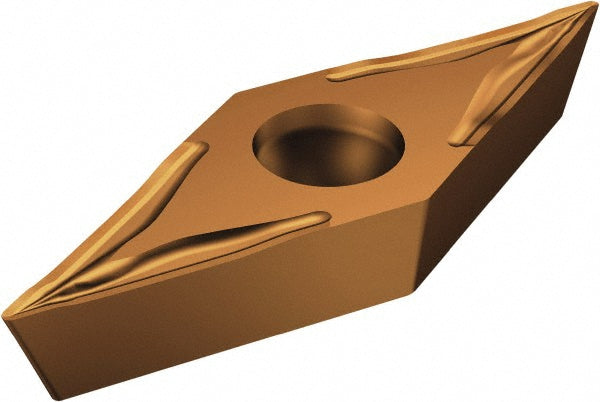

VCET 11 03 02-UM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5755908
MFR# 5755908ISO/ANSI# VCET 11 03 02-UM 1125Series CoroTurn 107
$41.09List $52.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755908 is a VCET 11 03 02-UM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4280
Insert materialCarbide
Insert shapeDiamond
Insert size code220
Insert styleVCET
Insert thickness in1/8
Iso codeVCET 11 03 02-UM 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeE
Wiper edgeNo
