Sandvik Coromant

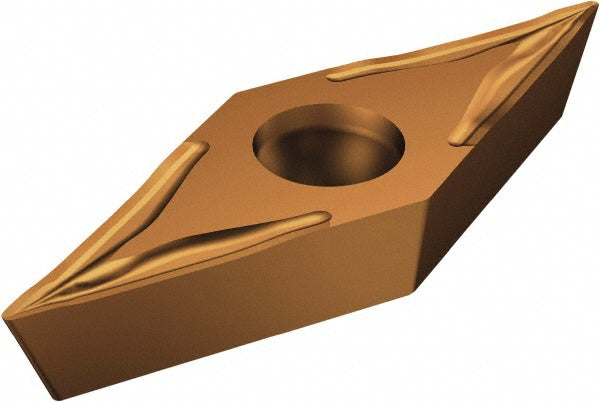

VCGT 11 03 04-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5755933
MFR# 5755933ISO/ANSI# VCGT 11 03 04-UM 1115Series CoroTurn 107
$34.58List $44.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755933 is a VCGT 11 03 04-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4201
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT 11 03 04-UM 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
