Sandvik Coromant

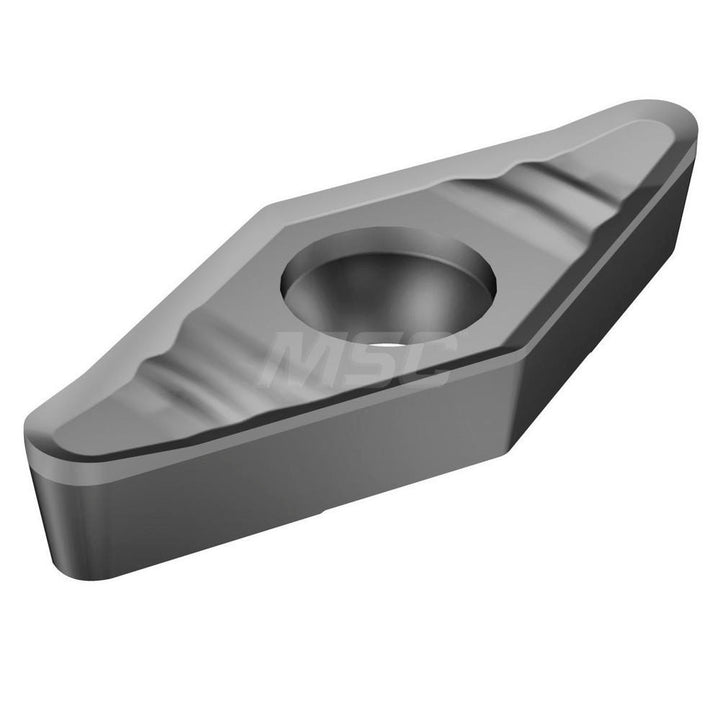

VCGX 11 02 02-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5755939
MFR# 5755939ISO/ANSI# VCGX 11 02 02-AL H10Series CoroTurn 107
$27.71List $35.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5755939 is a VCGX 11 02 02-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerMMC
Clearance codeC
Corner radius0.0079
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4280
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50
Insert styleVCGX
Insert thickness in3/32
Iso codeVCGX 11 02 02-AL H10
Length range0.4000 - 0.5000
Manufacturer gradeH10
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
