Sandvik Coromant

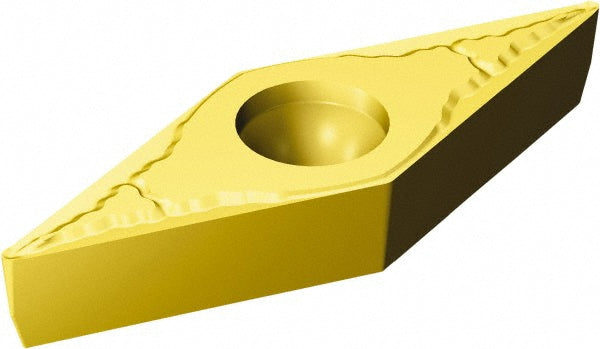

VCMT 11 03 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5755957
MFR# 5755957ISO/ANSI# VCMT 11 03 08-MM 2025Series CoroTurn 107
$24.46List $31.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755957 is a VCMT 11 03 08-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4044
Insert materialCarbide
Insert shapeDiamond
Insert size code222
Insert styleVCMT
Insert thickness in1/8
Iso codeVCMT 11 03 08-MM 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
