Sandvik Coromant

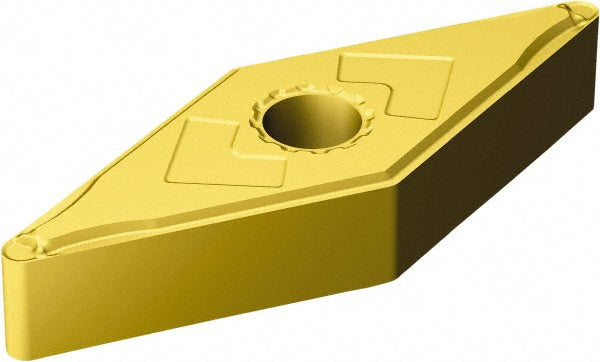

VNMG160404LC1525 Cermet Insert, Grade 1525, TiCN - Sandvik Coromant 5755968
MFR# 5755968ISO/ANSI# VNMG160404LC1525Series T-Max P
$32.20List $41.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1525
MaterialCermet
CoatingTiCN
Description
The Sandvik Coromant 5755968 is a VNMG160404LC1525 cermet indexable insert, grade 1525, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6539
Insert materialCermet
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404LC1525
Length range0.6500 - 0.7000
Manufacturers catalog number5755968
Manufacturer grade1525
Maximum depth of cut0.6382
Relief angle0
Tolerance codeM
