Sandvik Coromant

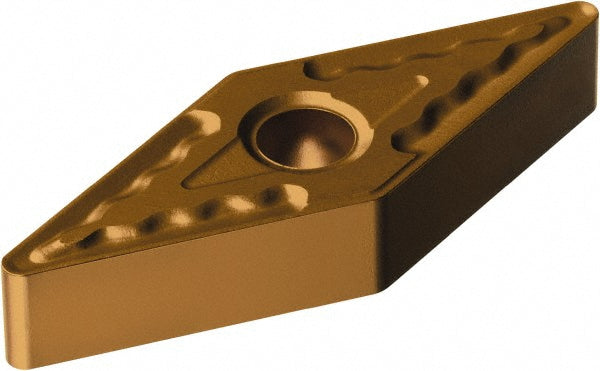

VNMG 16 04 04-QM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5755985
MFR# 5755985ISO/ANSI# VNMG 16 04 04-QM 1115Series T-Max P
$35.45List $45.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5755985 is a VNMG 16 04 04-QM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 04-QM 1115
Length range0.6000 - 0.6500
Manufacturer grade1115
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
