Sandvik Coromant

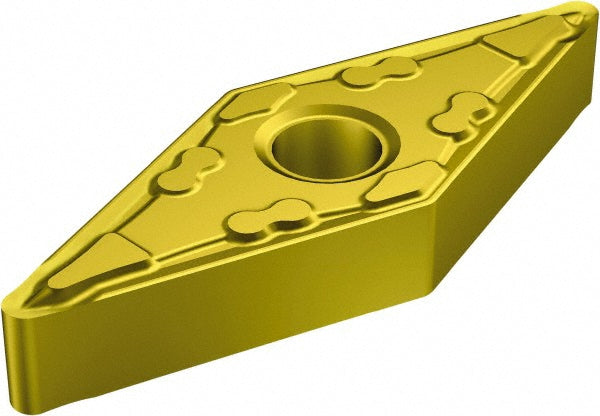

VNMG 16 04 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5755987
MFR# 5755987ISO/ANSI# VNMG 16 04 04-MF 2015Series T-Max P
$31.43List $40.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5755987 is a VNMG 16 04 04-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 04-MF 2015
Length range0.6000 - 0.6500
Manufacturer grade2015
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
