Sandvik Coromant
VNMG 16 04 04-QM 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5755989
MFR# 5755989ISO/ANSI# VNMG 16 04 04-QM 235
$32.20List $41.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade235
MaterialCarbide
CoatingTiCN
Description

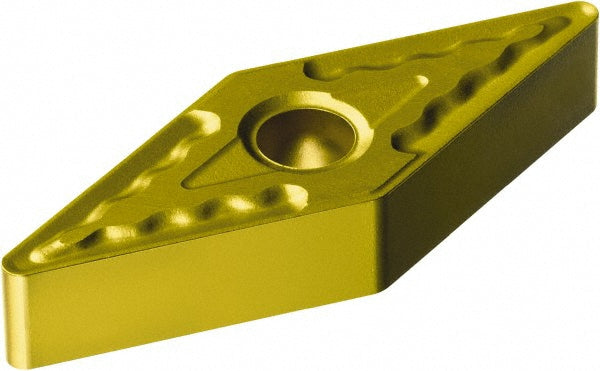

The Sandvik Coromant 5755989 is a VNMG 16 04 04-QM 235 carbide indexable insert, grade 235, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6380
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 04-QM 235
Length range0.6000 - 0.6500
Manufacturer grade235
Relief angle0
Tolerance codeM
