Sandvik Coromant

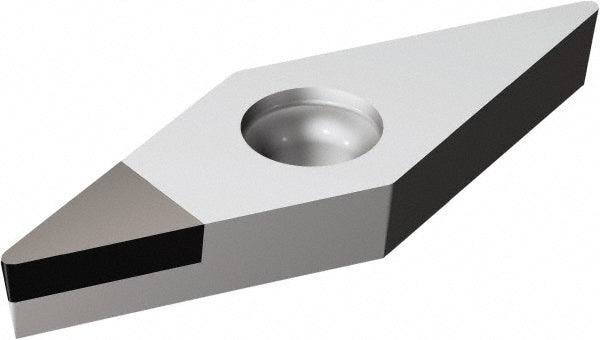

VCMW160404FP CD10 Carbide Insert, Grade CD10 - Sandvik Coromant 5755990
MFR# 5755990ISO/ANSI# VCMW160404FP CD10Series CoroTurn 107
$202.10List $259.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeCD10
MaterialCarbide
Description
The Sandvik Coromant 5755990 is a VCMW160404FP CD10 carbide indexable insert, grade CD10. Suited for non-ferrous metal.
Specifications
Chip breakerFP
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1732
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVCMW
Insert thickness in3/16
Iso codeVCMW160404FP CD10
Length range0.0000 - 0.3000
Manufacturer gradeCD10
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Tolerance codeM
Wiper edgeNo
