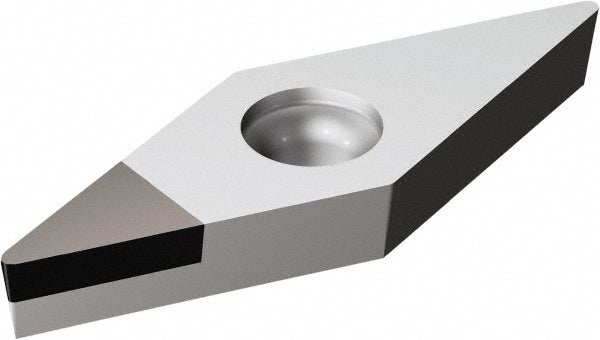

VCMW160412FP CD10 Carbide Insert, Grade CD10 - Sandvik Coromant 5755996
MFR# 5755996ISO/ANSI# VCMW160412FP CD10
$206.30List $264.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeCD10
MaterialCarbide
Description
The Sandvik Coromant 5755996 is a VCMW160412FP CD10 carbide indexable insert, grade CD10.
Specifications
Chip breakerW
Clearance codeC
Corner radius in3/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1063
Insert materialCarbide
Insert shapeDiamond
Insert size code333
Insert styleVCMW
Insert thickness in3/16
Iso codeVCMW160412FP CD10
Length range0.0000 - 0.3000
Manufacturer gradeCD10
Relief angle7
Tolerance codeM
