Sandvik Coromant

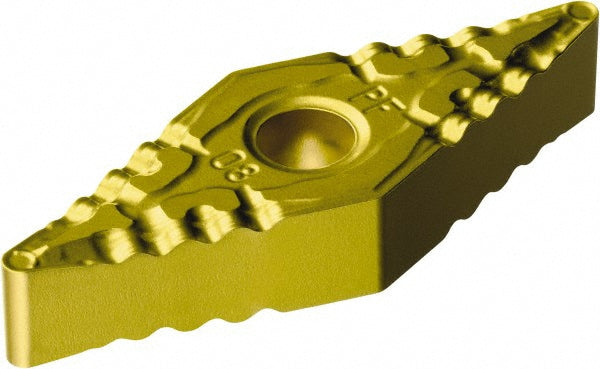

VNMG 16 04 08-PF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5756100
MFR# 5756100ISO/ANSI# VNMG 16 04 08-PF 1525Series T-Max P
$32.20List $41.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756100 is a VNMG 16 04 08-PF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6223
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 08-PF 1525
Length range0.6000 - 0.6500
Manufacturer grade1525
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
