Sandvik Coromant

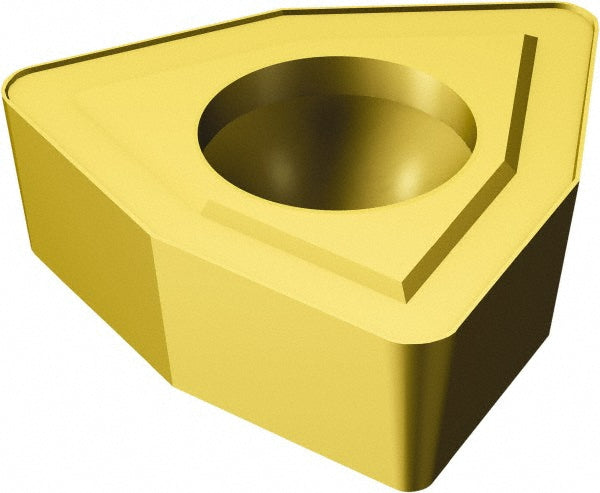

3/8" IC Solid Carbide Insert, Grade 235, TiCN/TiN - Sandvik Coromant 5756137
MFR# 5756137
$22.65List $29.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade235
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5756137 is a solid carbide indexable insert, grade 235, TiCN/TiN coated.
Specifications
Chipbreaker58
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0315
Cutting directionRight Hand
Hole diameter0.1457
Included angle degree7
Inscribed circle in3/8
Insert materialSolid Carbide
Insert size6
Insert styleWCMX
Length0.3750
Manufacturer grade235
Relief angle7
ShapeTrigon
Thickness in5/32
Width0.3750
