Sandvik Coromant
3/8" IC Solid Carbide Insert, Grade H13A - Sandvik Coromant 5756146
MFR# 5756146
$18.70List $23.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeH13A
MaterialSolid Carbide
Description

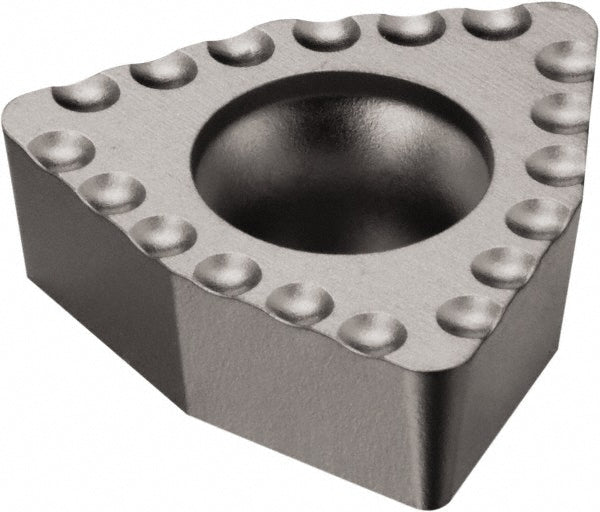

The Sandvik Coromant 5756146 is a solid carbide indexable insert, grade H13A.
Specifications
Chipbreaker51
Coating processUncoated
Corner radius0.0315
Hole diameter0.1457
Included angle degree7
Inscribed circle in3/8
Insert materialSolid Carbide
Insert size6
Insert styleWCMX
Length0.3750
Manufacturer gradeH13A
Relief angle7
ShapeTrigon
Thickness in5/32
Width0.3750
