Sandvik Coromant

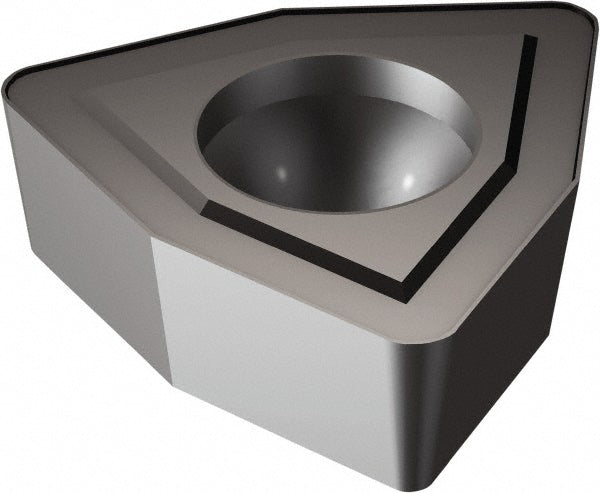

3/8" IC Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5756162
MFR# 5756162
$22.65List $29.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade3040
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5756162 is a solid carbide indexable insert, grade 3040, TiCN coated.
Specifications
Chipbreaker53
Coating finishTiCN
Coating processMTCVD
Corner radius0.0315
Cutting directionRight Hand
Hole diameter0.1457
Included angle degree7
Inscribed circle in3/8
Insert materialSolid Carbide
Insert size6
Insert styleWCMX
Length0.3750
Manufacturer grade3040
Relief angle7
ShapeTrigon
Thickness in5/32
Width0.3750
