Sandvik Coromant

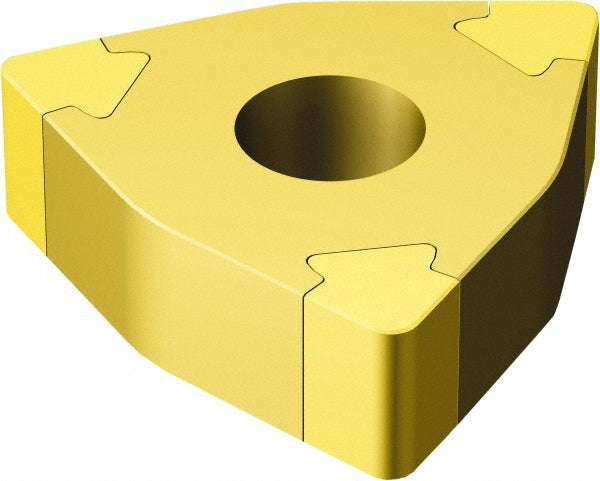

WNGA080404S01030A7015 Cubic Boron Nitride (CBN) Insert, Grade 7015, TiN - Sandvik Coromant 5756203
MFR# 5756203ISO/ANSI# WNGA080404S01030A7015Series T-Max P
$229.89List $294.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade7015
MaterialCubic Boron Nitride (CBN)
CoatingTiN
Description
The Sandvik Coromant 5756203 is a WNGA080404S01030A7015 cubic boron nitride (cbn) indexable insert, grade 7015, TiN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleER Treated; Negative Land
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCubic Boron Nitride (CBN)
Insert shapeTrigon
Insert size code431
Insert styleWNGA
Insert thickness in3/16
Iso codeWNGA080404S01030A7015
Length range0.3000 - 0.4000
Manufacturers catalog number5756203
Manufacturer grade7015
Maximum depth of cut0.1181
Relief angle0
Tolerance codeG
