Sandvik Coromant
1/2" IC Solid Carbide Insert, Grade 235, TiCN/TiN - Sandvik Coromant 5756227
MFR# 5756227
$22.65List $29.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade235
MaterialSolid Carbide
CoatingTiCN/TiN
Description

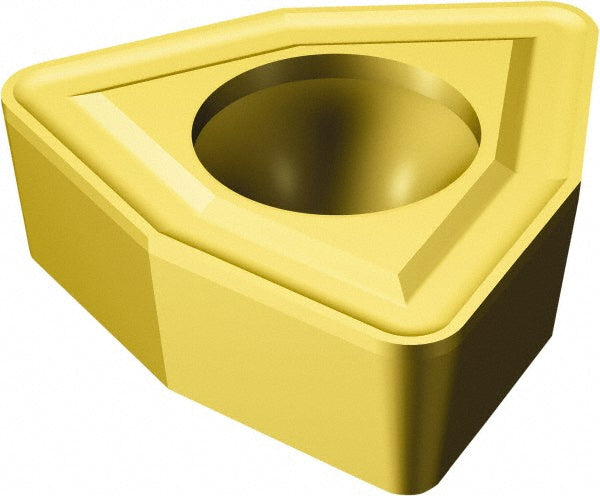

The Sandvik Coromant 5756227 is a solid carbide indexable insert, grade 235, TiCN/TiN coated.
Specifications
Chipbreaker56
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0157
Cutting directionRight Hand
Hole diameter0.1693
Included angle degree7
Inscribed circle in1/2
Insert materialSolid Carbide
Insert size8
Insert styleWCMX
Length0.5000
Manufacturer grade235
Relief angle7
ShapeTrigon
Thickness in3/16
Width0.5000
