Sandvik Coromant

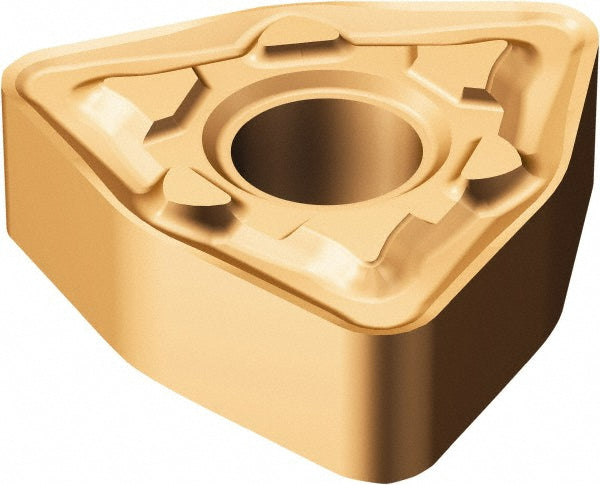

WNMG 06 04 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5756344
MFR# 5756344ISO/ANSI# WNMG 06 04 08-MM 1125Series T-Max P
$15.83List $20.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5756344 is a WNMG 06 04 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2250
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-MM 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
