Sandvik Coromant

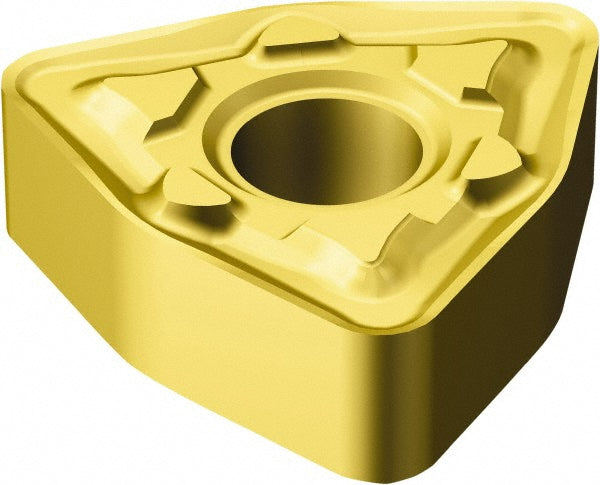

WNMG 06 04 08-MM 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756345
MFR# 5756345ISO/ANSI# WNMG 06 04 08-MM 2015
$15.21List $19.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756345 is a WNMG 06 04 08-MM 2015 carbide indexable insert, grade 2015, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2250
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-MM 2015
Length range0.0000 - 0.3000
Manufacturer grade2015
Relief angle0
Tolerance codeM
