WNMG 06 04 08-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5756347

Sandvik Coromant

WNMG 06 04 08-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5756347

MFR# 5756347ISO/ANSI# WNMG060408Series T-Max P

$13.33List $17.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeW - Trigon 80-Deg
Grade2035
MaterialCarbide
CoatingTiAlN

Description

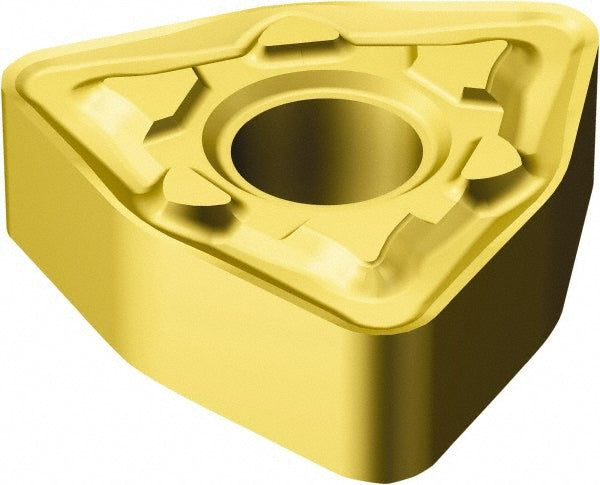

The Sandvik Coromant 5756347 is a WNMG 06 04 08-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeWNMG332
Ansi size code332
Chip breakerMM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-MM 2035
Iso insert codeWNMG060408
Iso size code060408
Length range0.0000 - 0.3000
Manufacturers catalog number5756347
Manufacturer grade2035
Maximum depth of cut0.2252
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
