Sandvik Coromant

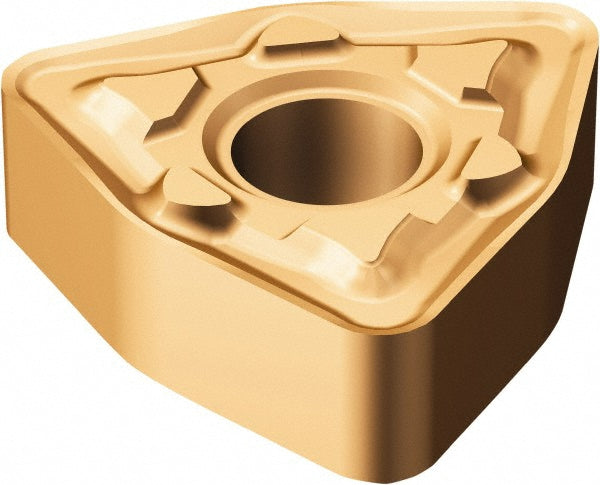

WNMG 06 04 08-MM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5756362
MFR# 5756362ISO/ANSI# WNMG 06 04 08-MM 1115Series T-Max P
$15.83List $20.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTrigon
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5756362 is a WNMG 06 04 08-MM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-MM 1115
Length range0.0000 - 0.3000
Manufacturers catalog number5756362
Manufacturer grade1115
Maximum depth of cut0.2252
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
