Sandvik Coromant

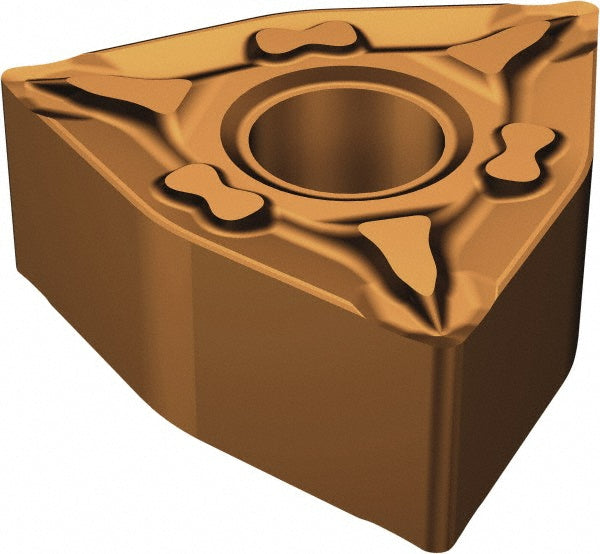

WNMG 08 04 04-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5756460
MFR# 5756460ISO/ANSI# WNMG 08 04 04-MF 1125Series T-Max P
$21.35List $27.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5756460 is a WNMG 08 04 04-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3263
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 04-MF 1125
Length range0.3000 - 0.4000
Manufacturer grade1125
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
