Sandvik Coromant

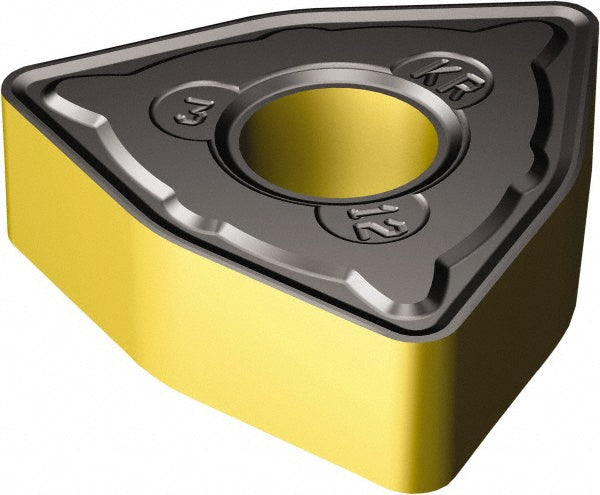

WNMG 08 04 08-KR 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5756483
MFR# 5756483ISO/ANSI# WNMG 08 04 08-KR 3210
$19.61List $25.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756483 is a WNMG 08 04 08-KR 3210 carbide indexable insert, grade 3210, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3105
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-KR 3210
Length range0.3000 - 0.4000
Manufacturer grade3210
Relief angle0
Tolerance codeM
