Sandvik Coromant

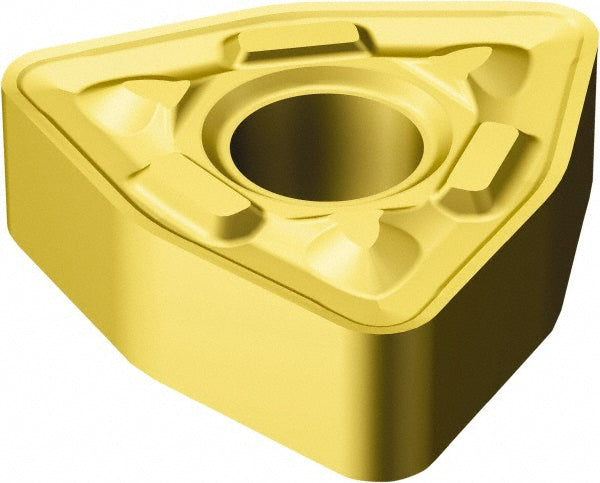

WNMG 06 04 12-MR 2035 Carbide Insert, Grade 2035 - Sandvik Coromant 5756519
MFR# 5756519ISO/ANSI# WNMG 06 04 12-MR 2035Series T-Max P
$14.40List $18.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade2035
MaterialCarbide
Description
The Sandvik Coromant 5756519 is a WNMG 06 04 12-MR 2035 carbide indexable insert, grade 2035.
Specifications
Chip breakerG
Clearance codeN
Coating processPVD
Corner radius in3/64
Cutting edge styleRounded
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTrigon
Insert size code333
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 12-MR 2035
Manufacturer grade2035
Maximum depth of cut (mm)5.32
Relief angle0
Tolerance codeM
