Sandvik Coromant

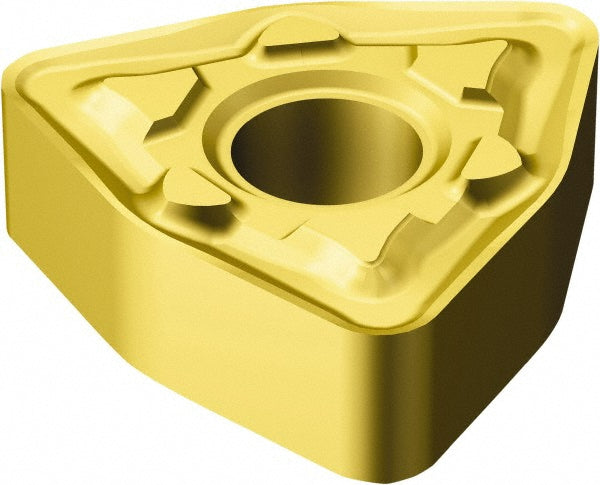

WNMG 08 04 08-MM 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756555
MFR# 5756555ISO/ANSI# WNMG 08 04 08-MM 2015Series T-Max P
$19.03List $24.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756555 is a WNMG 08 04 08-MM 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3105
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-MM 2015
Length range0.3000 - 0.4000
Manufacturer grade2015
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
