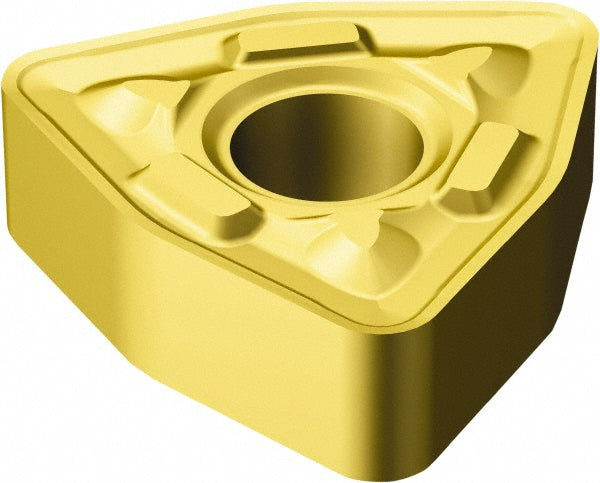

WNMG 08 04 08-MR 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756559

Sandvik Coromant

WNMG 08 04 08-MR 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5756559

MFR# 5756559ISO/ANSI# WNMG080402Series T-Max P

$19.03List $24.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade2015
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5756559 is a WNMG 08 04 08-MR 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-MR 2015
Iso insert codeWNMG080402
Iso size code080402
Length range0.3000 - 0.4000
Manufacturers catalog number5756559
Manufacturer grade2015
Maximum depth of cut0.3106
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
