Sandvik Coromant

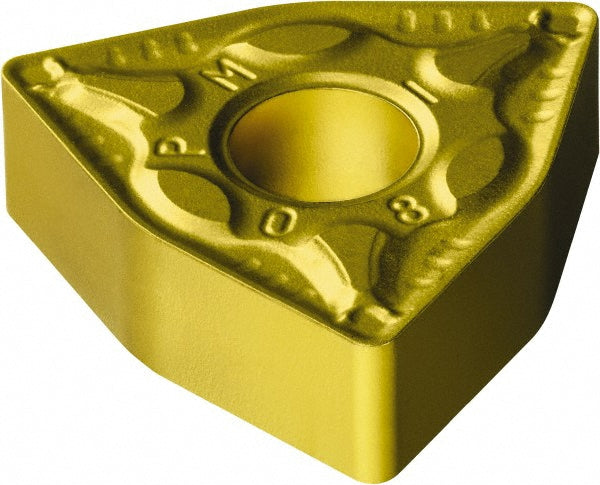

WNMG080408PM1525 Cermet Insert, Grade 1525, TiCN - Sandvik Coromant 5756606
MFR# 5756606ISO/ANSI# WNMG080408PM1525Series T-Max P
$17.51List $22.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1525
MaterialCermet
CoatingTiCN
Description
The Sandvik Coromant 5756606 is a WNMG080408PM1525 cermet indexable insert, grade 1525, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCermet
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408PM1525
Length range0.3000 - 0.4000
Manufacturers catalog number5756606
Manufacturer grade1525
Maximum depth of cut0.3106
Relief angle0
Tolerance codeM
