Sandvik Coromant

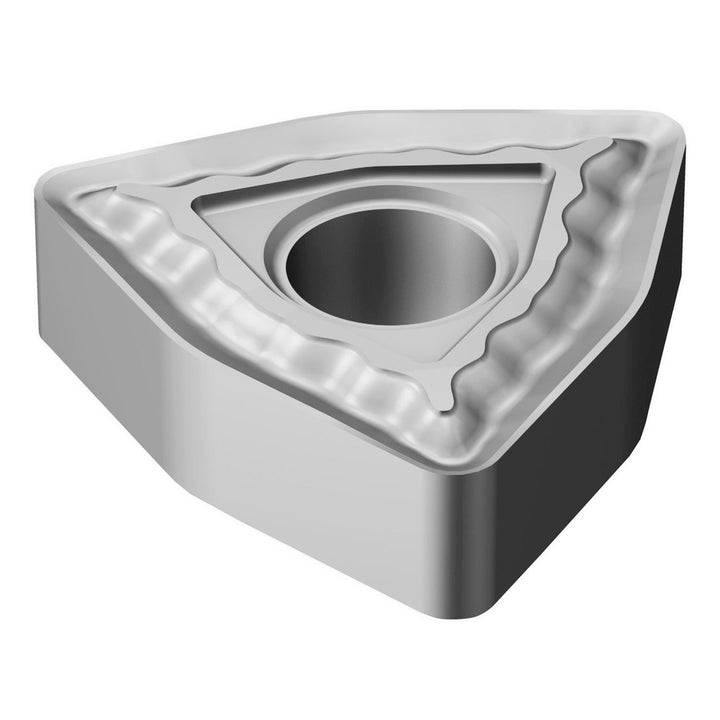

WNMG080404QMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5756644
MFR# 5756644ISO/ANSI# WNMG080404QMH13ASeries T-Max P
$15.62List $20.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5756644 is a WNMG080404QMH13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in1/64
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404QMH13A
Length range0.3000 - 0.4000
Manufacturers catalog number5756644
Manufacturer gradeH13A
Maximum depth of cut0.3264
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
