Sandvik Coromant

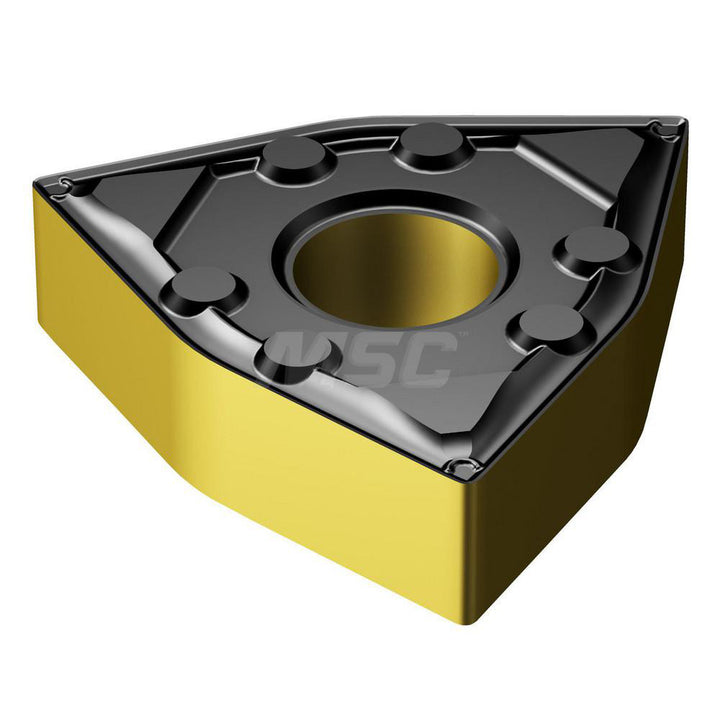

WNMG080404WF1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5756653
MFR# 5756653ISO/ANSI# WNMG080404WF1515Series T-Max P
$24.71List $31.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756653 is a WNMG080404WF1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404WF1515
Length range0.3000 - 0.4000
Manufacturers catalog number5756653
Manufacturer grade1515
Maximum depth of cut0.3264
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
