WNMG 08 04 12-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5756721

Sandvik Coromant

WNMG 08 04 12-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5756721

MFR# 5756721ISO/ANSI# WNMG080412Series T-Max P

$20.54List $26.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade2025
MaterialCarbide
CoatingTiCN

Description

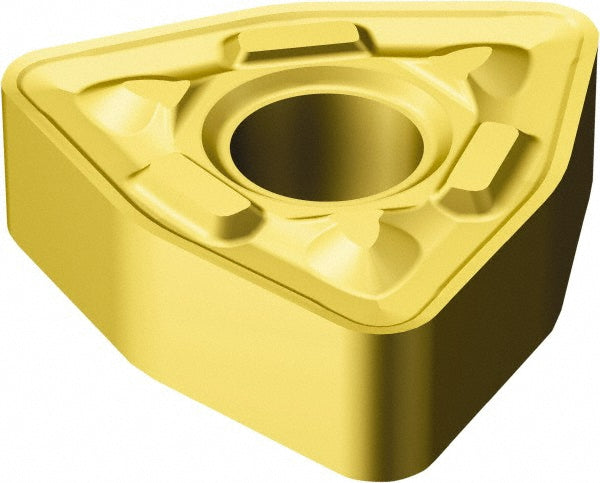

The Sandvik Coromant 5756721 is a WNMG 08 04 12-MR 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeWNMG433
Ansi size code433
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2948
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 12-MR 2025
Iso insert codeWNMG080412
Iso size code080412
Length range0.0000 - 0.3000
Manufacturer grade2025
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
