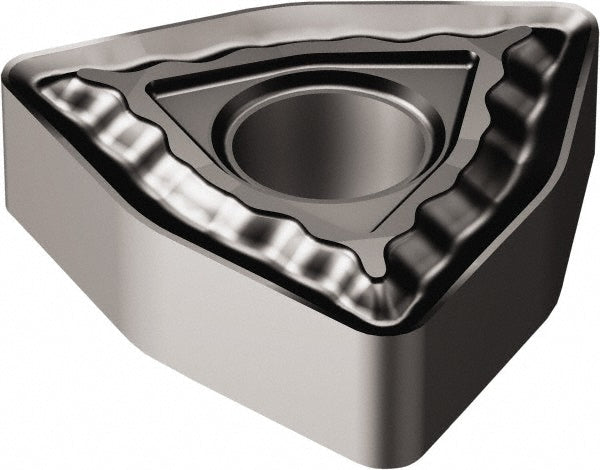

WNMG 08 04 08-QM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5756761
MFR# 5756761ISO/ANSI# WNMG 08 04 08-QM 1105Series T-Max P
$21.39List $27.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5756761 is a WNMG 08 04 08-QM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3105
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-QM 1105
Length range0.3000 - 0.4000
Manufacturer grade1105
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
