Sandvik Coromant

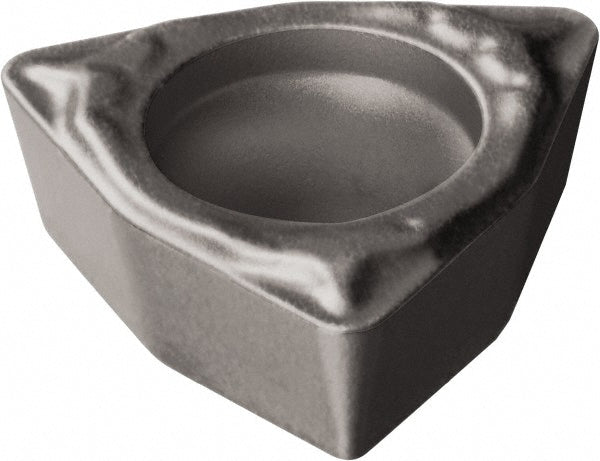

WPMT 02 01 02-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5757193
MFR# 5757193ISO/ANSI# WPMT 02 01 02-PF 5015Series CoroTurn 111
$14.90List $19.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5757193 is a WPMT 02 01 02-PF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
ChipbreakerPF
Coating processUncoated
Corner radius0.0079
Hole diameter0.0866
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code1.211
Insert styleWPMT
Iso codeWPMT 02 01 02-PF 5015
Length0.0947
Manufacturer grade5015
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialCast Iron
